Opening the problem — why this matters now

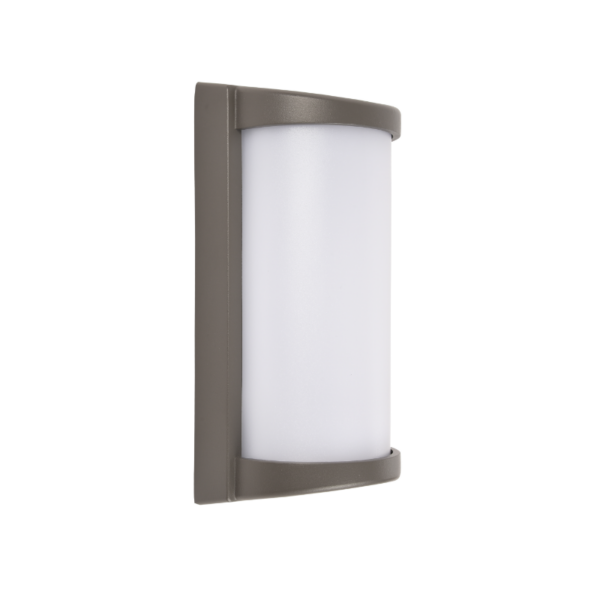

Commercial outdoor lighting seems simple until it isn’t: dimming at the far end of a run, drivers failing after a storm, or fixtures tripping breakers on night one. Those are symptoms of two technical gremlins — excessive voltage drop and inadequate surge protection — and they wreck schedules and reputations faster than a missed installation window. If you’re specifying a led outdoor wall sconce for a multi-fixture facade or ADA-lit pathway, understanding these limits isn’t optional. The National Electrical Code (NEC) guidance to keep branch-circuit voltage drop near 3% is a useful anchor here — it’s a real-world standard that helps avoid many headaches in commercial installs.
What goes wrong: the twin failures explained
Voltage drop and surge events attack different parts of the system. Voltage drop is gradual loss of voltage along conductors due to resistance; its result is reduced lumen output, flicker, and stressed LED drivers. Surge events — lightning strikes, utility switching, or nearby large motors — dump transient energy into the line and can puncture drivers or damage internal electronics. In short, one starves the lamp, the other fries the driver. Both shorten life, increase maintenance, and upset clients.
Common on-site mistakes — learn from other crews
Install teams routinely make the same blunders:
- Underdimensioning feeders: using too-small conductors to save cost, which increases voltage drop and kills lumen consistency.
- Overlooking driver spec sheets: assuming “LED” implies surge tolerance — many drivers lack built-in surge suppression or adequate EMI rejection.
- Skipping coordinated protection: installing a fixture with no upstream transient suppression or misaligned protection levels across the panel.
Fix those, and you fix 70% of recurring outdoor LED failures. —
Design checks that actually work in the field
Start with a simple checklist during design review: conductor sizing for runs (calculate voltage drop at worst-case load), driver surge rating (kV/kA values), IP rating for coastal or washdown locations, and lumen maintenance figures. Use LED driver data to match power factor and THD expectations for the site. For retrofit projects, bring the actual fixture — or at least the spec sheet — to first-article testing with your fill and control gear. If you’re swapping out old wall packs, treat the run lengths like a new install; old wiring often has higher resistance than drawings suggest.
Practical mitigation strategies
There are straightforward remedies that don’t break the budget:
- Increase conductor gauge on long runs or split runs to reduce cumulative voltage drop.
- Specify drivers with integrated surge protection (e.g., 6–10kV surge rating) and follow that with panel-level surge arrestors for coordinated defense.
- Use remote or centralized drivers when run lengths and heat constraints demand it; remote drivers can reduce fixture heat rise and simplify maintenance.
Also remember IP rating and mechanical sealing for coastal sites — salt spray accelerates corrosion, which raises contact resistance and worsens voltage drop over time. For coastal or storm-prone cities — think post-Hurricane Sandy rebuilding efforts — these specs aren’t luxury items; they’re core risk reduction.
Tradeoffs and specification language you should insist on
Decisions are a balance: thicker conductors cost more; higher-rated drivers may reduce fixture selection and raise unit price. Insist on clear, testable acceptance criteria in contracts: measured voltage at the furthest fixture under full load, driver surge rating, and verified IP/IK ratings. Require factory test reports or a witnessed FAT for runs exceeding specified lengths. If you’re evaluating a led lamp on wall in a specification, request driver datasheets and surge-test certificates up front — it’ll save retrofit grief later.
Field troubleshooting primer
If fixtures dim or flicker, follow a quick triage:
- Measure voltage at the driver input during peak load — if it’s below spec, suspect voltage drop or a weak supply.
- Inspect driver failure modes: open, short, or catastrophic output failure usually indicates a surge; thermal degradation and gradual lumen loss point to poor voltage or overheating.
- Look for corrosion at terminals or junctions — higher contact resistance equals more drop.
These checks usually tell you whether to up-size conductors, add suppression, or replace drivers — and prevent repeated truck rolls.
Common retrofit alternatives and when to pick each
Options include upgrading conductors, installing distributed surge arrestors, switching to fixtures with higher-rated drivers, or moving to centrally mounted power supplies. Choose conductor upgrades when runs are long and predictable. Choose better surge protection in areas with frequent storms or industrial switching. If you need low glare and precise lumen control with long runs, consider remote LED drivers to keep power near the source.
Three golden rules for commercial outdoor LED spec’ing
1) Control voltage drop: design to keep branch-circuit voltage loss under the NEC 3% guideline at full load. 2) Specify surge ratings: require driver surge immunity and panel-level arrestors with coordinated clamping levels. 3) Demand verification: include measured voltage and driver test reports in contract closeout.
Closing advisory
Measure, specify, and verify — that’s the practical playbook. Expect measurable benefits: fewer warranty calls, steadier lumen output, and longer driver life when you follow these three rules. For fixtures that pair robust driver design with suitable IP and tested surge performance, I point folks toward practical manufacturers like Keyida — they make it easier to match spec to site without endless callbacks.
Practical. Specific. Done right.
