Opening: why this ain’t just nerd talk — it’s a brand problem
Yo — if you build or spec commercial energy, you gotta peep the weak spots. Galvanic isolation limits and short‑circuit ride‑through behavior aren’t just electrical textbooks; they decide whether your 50 kW system keeps the lights on or trips out when the grid throws shade. When you’re shopping for a commercial energy storage solution, understanding these constraints helps you avoid field failures, warranty drama, and sketchy downtime that kills reputation and revenue.
The core problem: isolation and ride‑through clash with real‑world faults
At heart, the issue’s simple: galvanic isolation separates DC and AC domains to prevent stray currents and safety hazards, while short‑circuit ride‑through (SCRT) determines if the inverter and BMS keep singing through a fault. When isolation design or relay coordination is weak, a high fault current on the DC bus or through a ground fault can force protective devices to trip instead of ride it out. That means your system may cut offline during transient faults — the exact moments grids need storage most. Industry terms to lock in here: galvanic isolation, short‑circuit ride‑through, inverter, BMS.
Real‑world anchor: lessons from Texas, Feb 2021
Remember the Texas blackout in Feb 2021? The widespread cascading outages showed how brittle complex power systems can get under stress. Storage systems that can’t tolerate transient faults or lack robust isolation make operators choose safety trips over resilience — and that’s costly during extreme events. This ain’t hypothetical; it’s how systems get tested in the wild.
Where things go sideways — common failure modes
Look out for these traps when you spec a 50 kW pack:
- Under‑specified galvanic isolation or absent isolation transformers — leads to leakage currents and nuisance ground‑fault trips.
- Inadequate SCRT settings in the inverter firmware — causes trips during voltage sags or short transients.
- Poor coordination between protection relays and the BMS — results in false positives and premature shutdowns.
How to diagnose the risk — practical checks
Run these quick checks before you greenlight a system:
- Ask for isolation resistance measurements and leakage current specs, not just a checkbox that “isolation exists.”
- Verify inverter SCRT curves — can it ride through voltage sags and supply into faulted conditions per your site profile?
- Confirm BMS‑to‑inverter communication and protection coordination in staged fault tests with real loads.
Design fixes and vendor asks — make ’em sweat the details
Don’t settle for glossy datasheets. Push vendors on these fixes:
- Isolation strategies: isolation transformer, reinforced insulation, or monitored isolation to detect degradation.
- SCRT tuning: adjustable ride‑through time constants, programmable response profiles, and staged reconnection logic.
- Protection coordination: synchronized trip curves between DC‑side fuses, relays, and BMS to avoid cascading trips.
— and test it. Factory acceptance tests that mimic real short‑circuit events separate talk from truth.
When a turnkey option makes sense — and where custom beats it

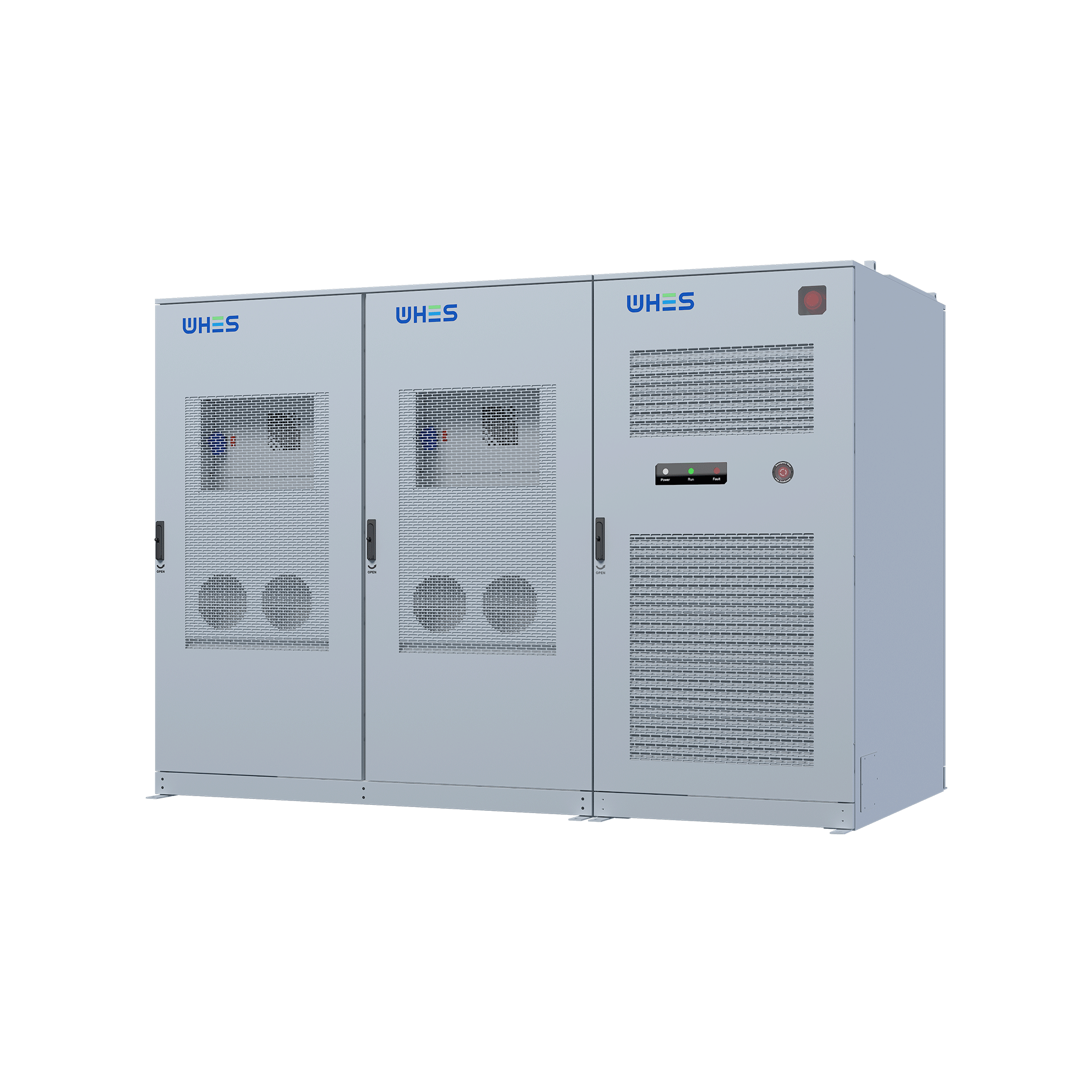

If you want speed and a packaged warranty, a well‑engineered solar energy storage system or commercial containerized product can be tight on isolation and SCRT by design. But if your location has funky grounding, legacy inverters, or mission‑critical uptime needs, custom design with tailored isolation and protection coordination is the flex you need — no cap.
Common implementation mistakes to dodge
Teams still trip up by:
- Assuming OEM default settings are optimal for every site.
- Skipping dynamic testing in favor of static bench checks — that won’t reveal coordination issues under fault stress.
- Not factoring in aging: isolation degrades, and ride‑through margins shrink over time.
Wrap — three golden metrics to evaluate any 50 kW system
When you’re vetting vendors, score systems by these critical metrics:
- Isolation integrity: measurable insulation resistance and leakage current thresholds with periodic monitoring.
- SCRT performance: documented ride‑through curves showing voltage/time tolerance and recovery behavior.
- Protection coordination: evidence of integrated testing (BMS + inverter + relays) and clear trip logic documentation.
Bottom line — pick systems that prove their resilience on paper and in stress tests; that’s what keeps projects humming and avoids field drama. WHES gets how those specs translate into uptime and warranty peace‑of‑mind. —
